ALIER-52

  0 reviews / Write a review

  • ALIER-52
  • Availability:  In Stock
  • Product Code:  ALIER-52
$9 999.00

Specification
Power supply voltage (+/-10 %) 220V, 50 Hz
Power consumption 0,5 kW
Coating thickness, hardening 10-500 µm
Coating thickness, local (max) 2-3mm
Performance, hardening (max) 6 cm2 /min
Generator Dimensions 170 х 250 х 410 mm
Hand tool dimensions (without cable) 150 х 90 х 45 mm
Generator mass 14 kg
Mass of the hand tool 0.25 kg

There are no reviews for this product.

Write a review
Captcha
Description

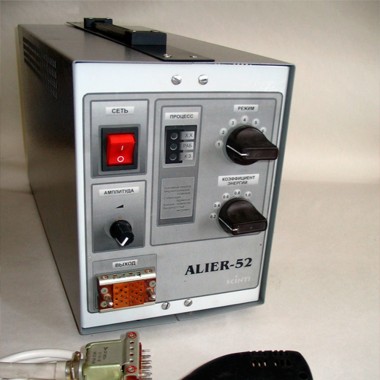

“ALIER-52” is a portable installation for reconditioning or hardening of components in the manual mode with special hand instrument (a vibration exciter).

The hardening of components is carried out by the standard TiCo, WCo carbides or special electrodes of integrated micro/nanocristalline structures. The reconditioning of components is performed by the electrodes made from wide used in the industry types of steels, metals and different аlloys.

The installation can be used for local electroerosion removing of material from metal products in a liquid medium.

A generator is adaptable which supports both the dependent and the independent modes.

The generator control unit analyzes the state of interelectrode spacing and flexible regulates the input energy into the interelectrode spacing in order to stabilize the transfer parameters of material from the electrode to the component.



Tags: ALIER-52
